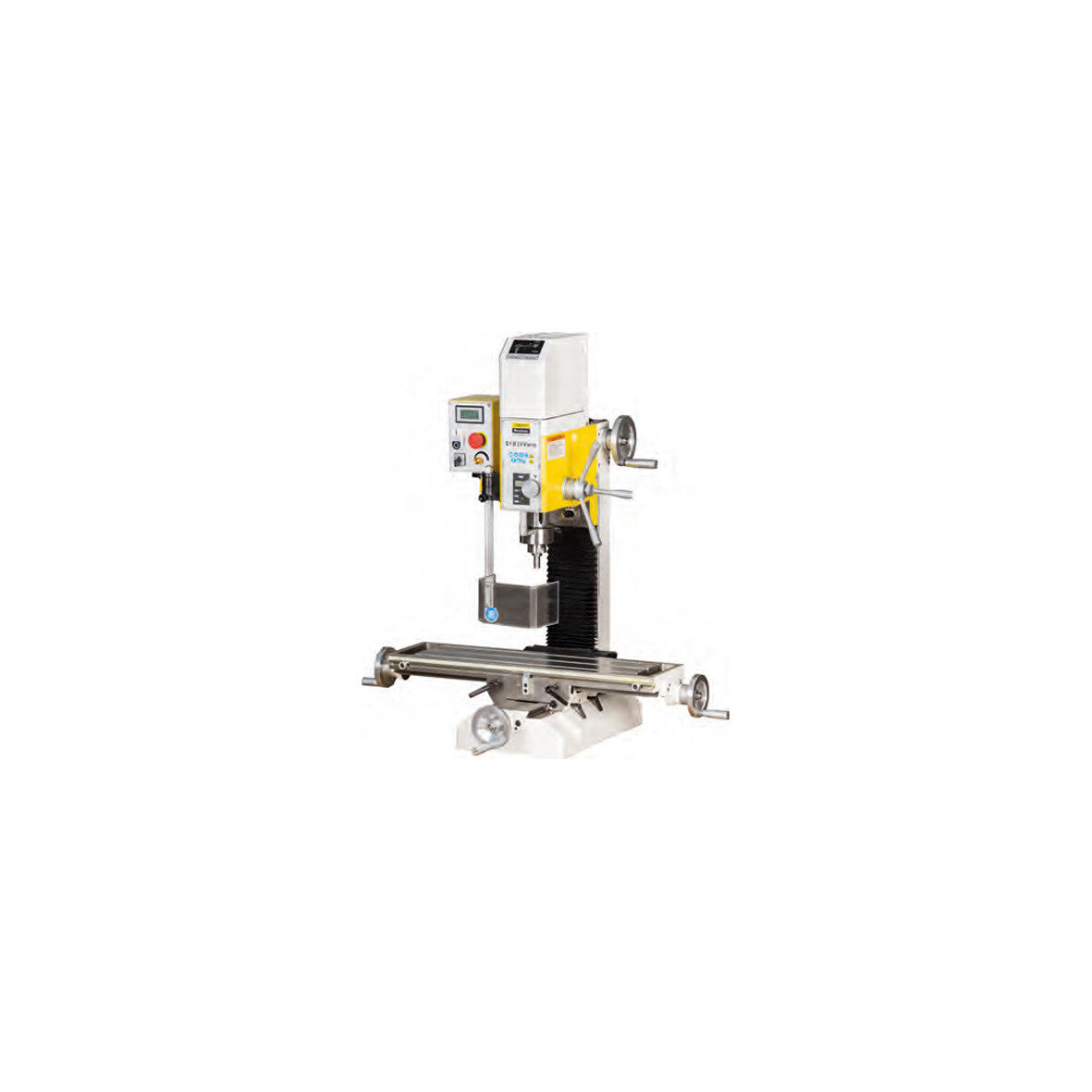

Bor og fresemaskin BFM 28 Vario

Accurate transverse movement for milling
Wide speed range from 50 to 2500 rpm, with inverter
Digital LED display of spindle speed
Digital LED display of spindle lowering
Forward and reverse motion for tapping
Very simple safety switch for low-voltage operation – emergency stop switch
M 10 tie rod in the hollow spindle for clamping attachments
Height-adjustable spindle guard
High-quality, hardened and ground cross table, generously dimensioned
All movements read by graduated scales
Backlash compensation on all 3 axes using V-shaped gibs
Highly versatile machine use
Head tilt +/- 90°
Adjustable end stops
Robust dovetail slide guarantees perfect rigidity and precision for the machine
Guide protection by Bellows

Drilling capacity in steel: max. 28 mm
Milling/facing capacity: max. 52 mm
Face milling capacity: max. 20 mm
Cylinder throat: 200 mm
Head tilt: ± 90°
Spindle taper: MT 3
Motor: Variable speed drive
Spindle speeds: 100 – 3,000 rpm
Spindle stroke: 50 mm
Table dimensions: 700 x 180 mm
X-axis table travel: 490 mm
Y-axis table travel: 155 mm
Z-axis head travel: 280 mm
T-slot dimensions: 12 mm
Number of T-slots: 3
Motor power: 230 V / 50 Hz / 0,75 kW
Machine dimensions: 870 x 570 x 860 mm
Machine weight: 130 kg
