MagSwitch Pivot Angel 200

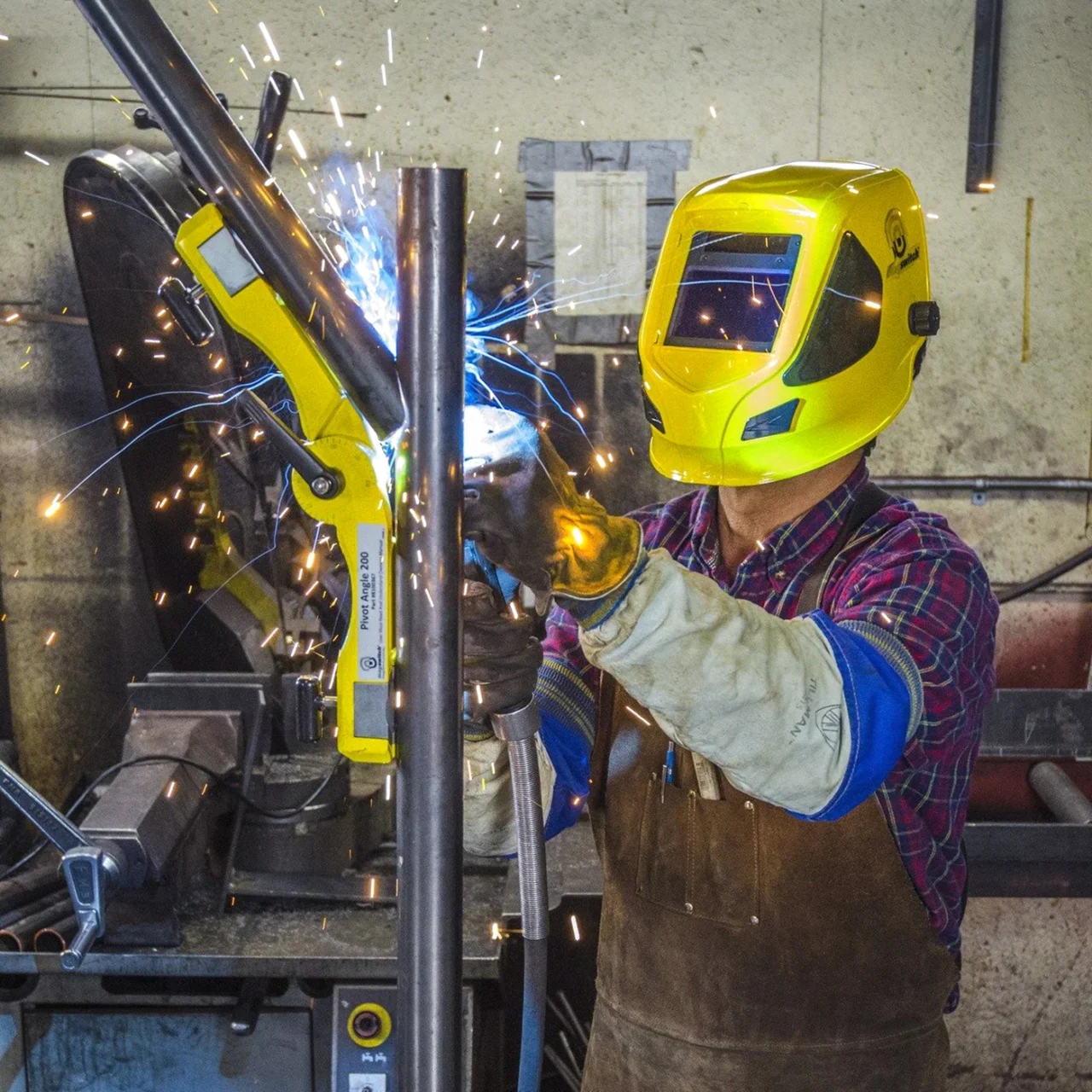

Magswitch Pivot Angle 200 has a holding angle range from 28 to 270 degrees, with each axis featuring a Magswitch magnet with a 200 lb. (91 kg) holding capability. No helping hands required. Get the job done by yourself with the Pivot Angle 200 workholding tool.

Features:
On/Off Magswitch Magnet that truly stays clean.
Incredibly strong –each side features a 200 lb. (91 kg).

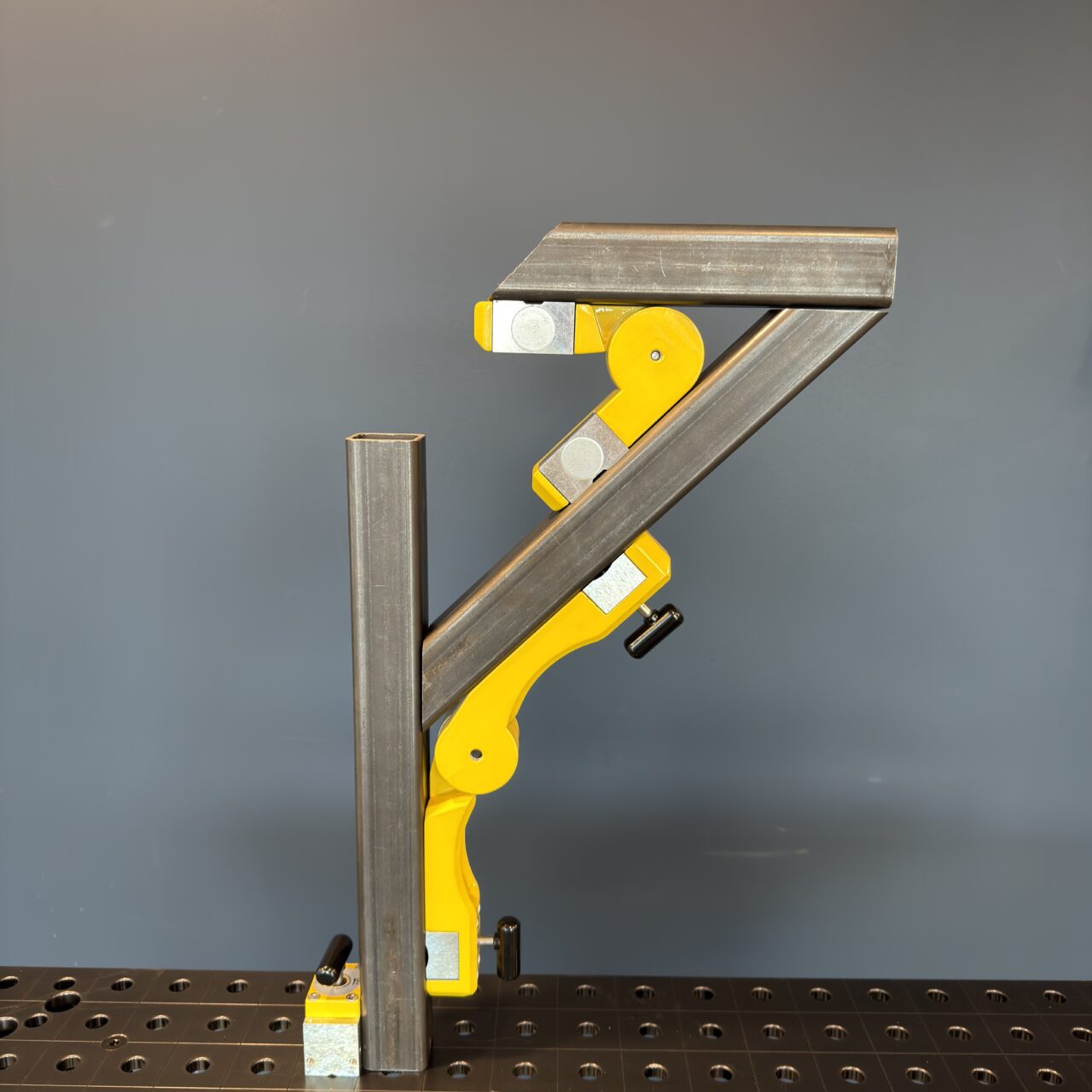

Magswitch Multi plane workholding on three sides of each magnet Pivot Range from inside 28 to 270 degree angles.
Accommodates flat and pipe.
Single lock on elbow for fast securing of your angle.
Odd angles –Incredibly fast set ups -literally in seconds.
Magswitch offers incredible strength, versatility and precision and sets up in seconds.
No wasted time cleaning magnet for use as is the case with older switching technology.Metal chips end up on floor, not in your finger!
Don’t take unnecessary safety risks holding steel at odd angles with your hands –lets us help.

Specs:
Max Breakway: 215 lbs / 97.5 kg on 3/16 in steel plate thickness
2:1 Shear Working Load: 48 lbs / 21.7 kg
Full Saturation Thickness: 3/16 in / 4.7 mm
Product Weight: 1.8 lbs / 0.8 kg
Dimensions: 9.1 x 3.9 x 6.4 in / 231.1 x 99 x 162.5 mm
Magnetic Pole Footprint: 41.25 mm x 56 mm
